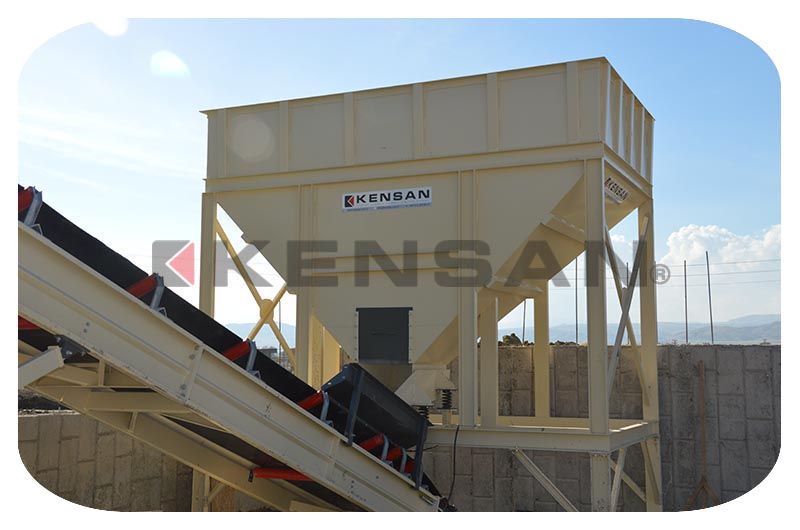

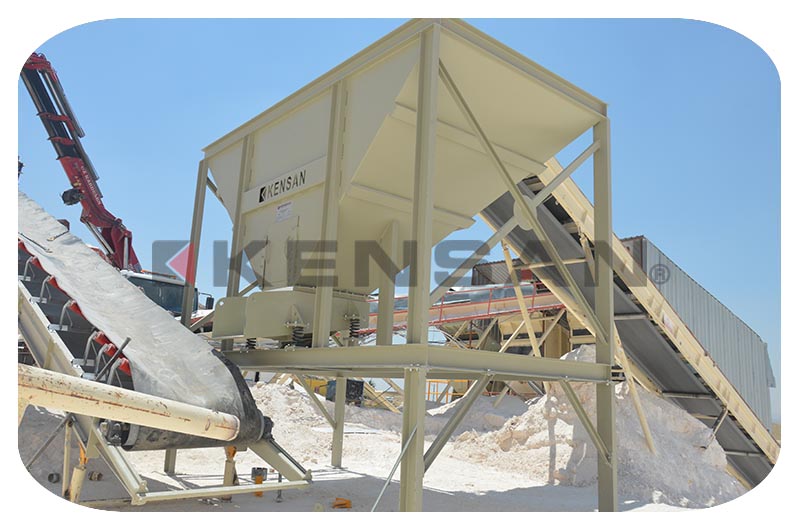

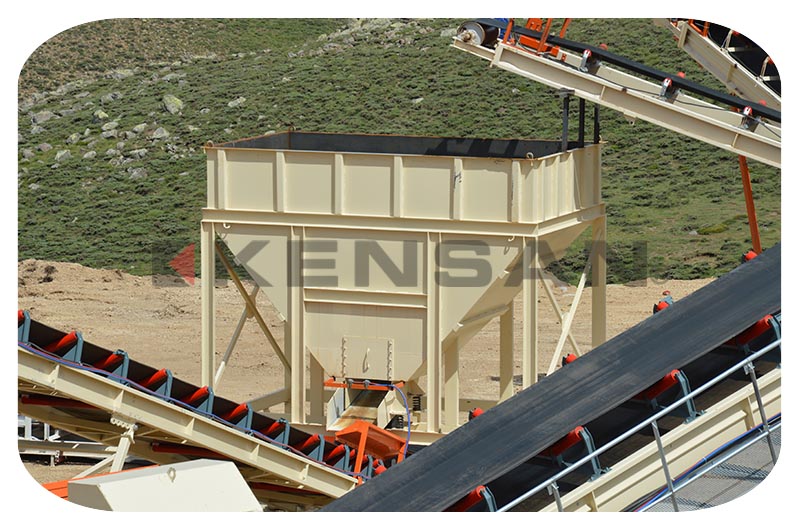

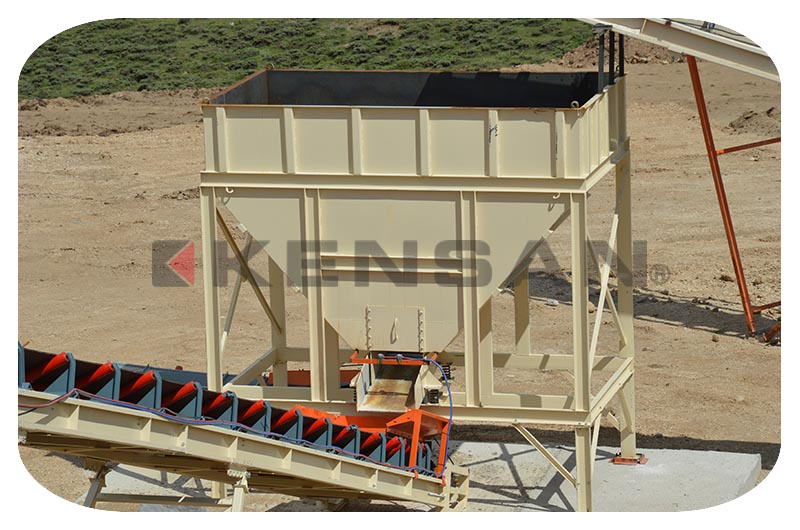

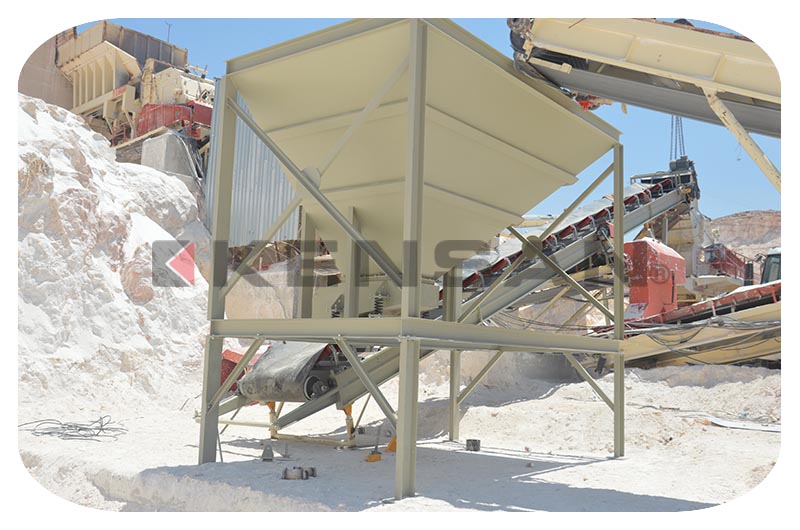

Feed Bunker

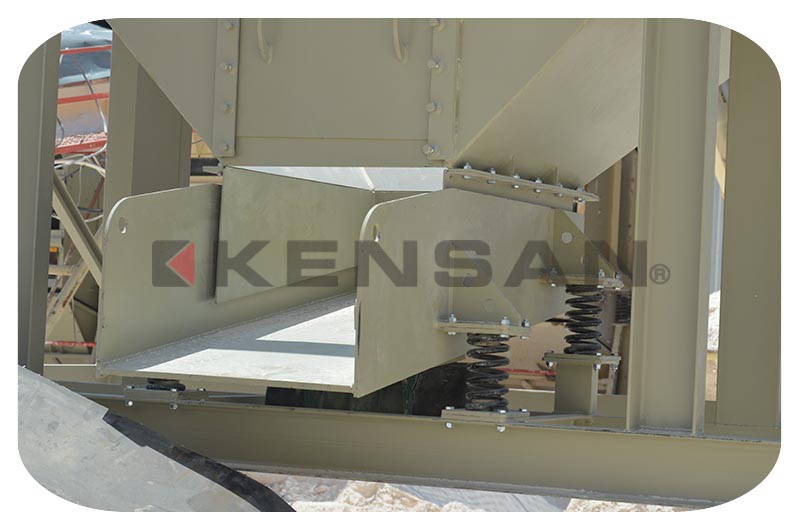

KENSAN series vibro-feeders have been designed as to be suitable for the versatile applications in order to be able to meet the needs of customers. These vibratory feeders in the secondary group are suitable for feeding the materials in the range of 0-200 mm. All surfaces of these feeders run by the powerful vibromotors are coated with Hardox primer against abrasion.
| Tip / Type | BB07 | BB09 | BB11 | BB13 |
| Besleyici Genişliği / Feeder Width (mm) | 700 | 900 | 1100 | 1300 |
| Besleyici Uzunluğu / Feeder Length (mm) | 1600 | 1600 | 1800 | 1800 |
| Kapasite / Capacity ( t/h ) | 100-150 | 150-200 | 200-250 | 250-300 |
| Bunker Hacmi / Hopper's Volume | 12 m³ | 25 m³ | 35 m³ | 45 m³ |
| Tahrik / Drive ( kW ) | 2 X 1.1 | 2 X 1.6 | 2 X 2.2 | 2 X 3.8 |
| Max Besleme Büyüklügü | 150 mm | 150 mm | 250 mm | 250 mm |
