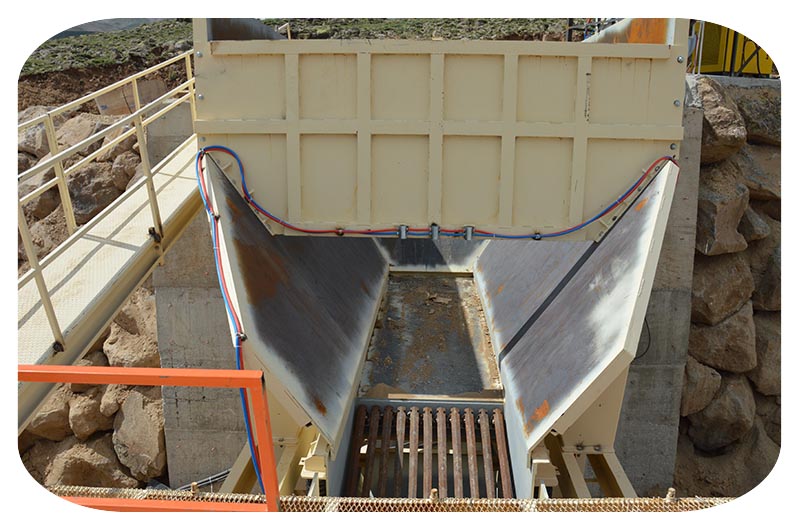

Rock Feeders
These are the feeders driven by two each robust-type vibromotors working synchronized with each other supported by the heavy - duty type helical springs ensuring regular transmission of the raw material coming from the quarry to the primary crushers. Thanks to the manganese grids found at its front section, the clearance sizes of which can be adjusted, the earthy substances in the raw material are thrown out of the system before it enters the primary machine. In parallel to the request, the materials that come out hereof can be re-sieved with a suitable sieve and any material escaped during such discharge can be re-included into the system. Feeding capacity in the vibratory feeders we manufacture with the vibromotor – oscillating feeders we have manufactured can be adjusted. In this way, the primary machine is fed regularly and the feeders are not exposed to be activated / paused constantly.
| Tip / Type | KG11 | KG10 | KG09 | KG13 |
| Besleyici Genişliği /Feeder Width (mm) | 600 | 950 | 1200 | 1350 |
| Besleyici Uzunluğu /Feeder Length (mm) | 3000 | 4000 | 5000 | 5000 |
| Kapasite / Capacity ( t/h ) | 45 - 100 | 100 - 200 | 120 - 300 | 300 - 600 |
| Bunker Hacmi / Hopper's Volume | 12 m³ | 25 m³ | 35 m³ | 45 m³ |
| Tahrik / Drive ( kW ) | 2 X 2 | 2 X 4 | 2 X 7,5 | 2 X 9,8 |
| Ağırlık / Weight (kg) | 9500 | 13000 | 17000 | 18000 |
| A Ölçüsü (mm) / Dimension A | 4000 | 4500 | 4600 | 4600 |
| B Ölçüsü (mm) / Dimension B | 4800 | 5800 | 6800 | 6800 |
| C Ölçüsü (mm) / Dimension C | 3000 | 3600 | 3820 | 3970 |
